If you’re looking to improve your astrophotography with refractor telescopes, I recommend the SVBONY SV503, Astromania 2″ Flattener, and the SV209 Field Flattener for wider, sharper images. Consider compatibility, optical quality, coatings, and ease of installation when choosing a flattener. These devices correct field curvature and distortions, giving you clearer, more detailed results. Want to learn more about selecting the perfect one for your setup? Keep exploring for detailed insights.
Key Takeaways
- Match the flattener’s optical and threaded specifications with your telescope’s model and focal ratio for optimal performance.
- Choose high-quality, multi-coated lenses like S-FPL51 ED for maximum light transmission and minimal aberrations.
- Ensure the flattener corrects field curvature for sharp, edge-to-edge focus across your camera’s sensor.
- Select lightweight, easy-to-install models compatible with your focuser and accessories for seamless astrophotography setup.
- Consider focal reducers to widen your field of view and enhance star sharpness, improving overall image quality.

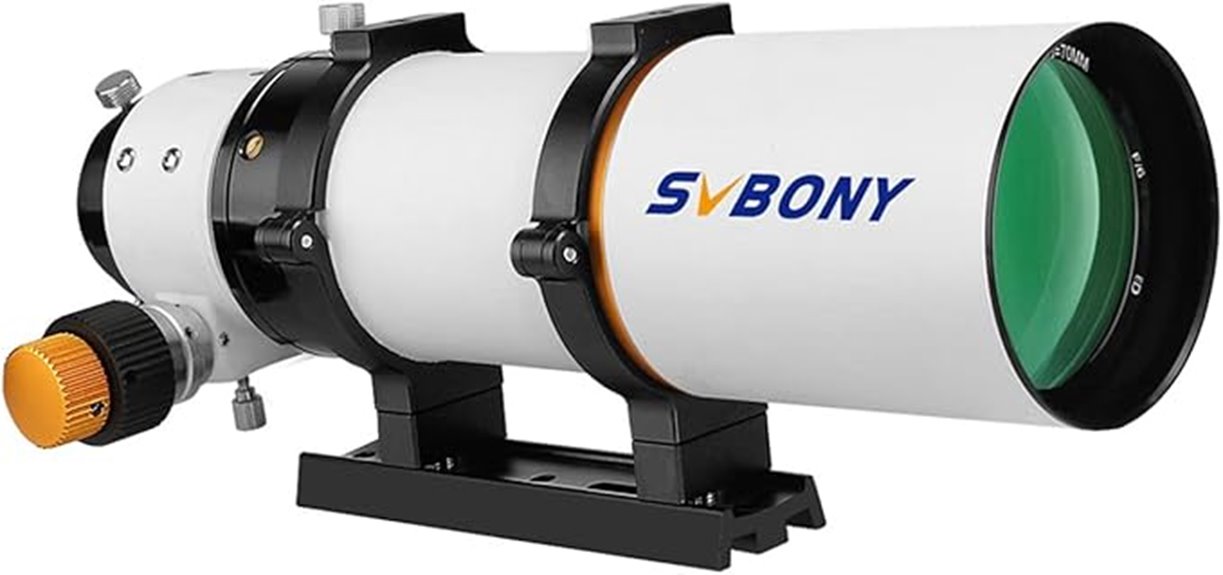

SVBONY SV503 Portable Telescope Tube, 70ED F6 Optical Tube for Astronomy
Are you looking for a portable telescope that combines high-quality optics with versatile use? The SVBONY SV503 Portable Telescope Tube, featuring a 70ED F6 optical configuration, is an excellent choice. It uses an S-FPL51 ED element to nearly eliminate chromatic aberration, ensuring sharp, high-contrast images. Its doublet air-spaced achromatic design makes it suitable for both travel and detailed astrophotography. The 2-inch RAP focuser supports heavy photographic accessories, providing stability and precision. Weighing just under 5 pounds and compact at 12.5 inches, it’s perfect for mobile observers who want authentic images of the moon, nebulae, galaxies, or nature.
Best For: mobile astronomy enthusiasts, astrophotographers, and beginner to intermediate observers seeking high-quality, portable telescopic imaging.
Pros:
- High-quality optics with S-FPL51 ED element virtually eliminating chromatic aberration
- Compact and lightweight design weighing under 5 pounds for easy portability
- Supports heavy photographic accessories with a stable 2-inch RAP focuser
Cons:
- Limited aperture size may restrict deep-sky object visibility compared to larger telescopes
- Designed primarily for travel and mobile use, possibly less suitable for stationary, large observatories
- Requires additional accessories (e.g., mounts, cameras) for full astrophotography setup

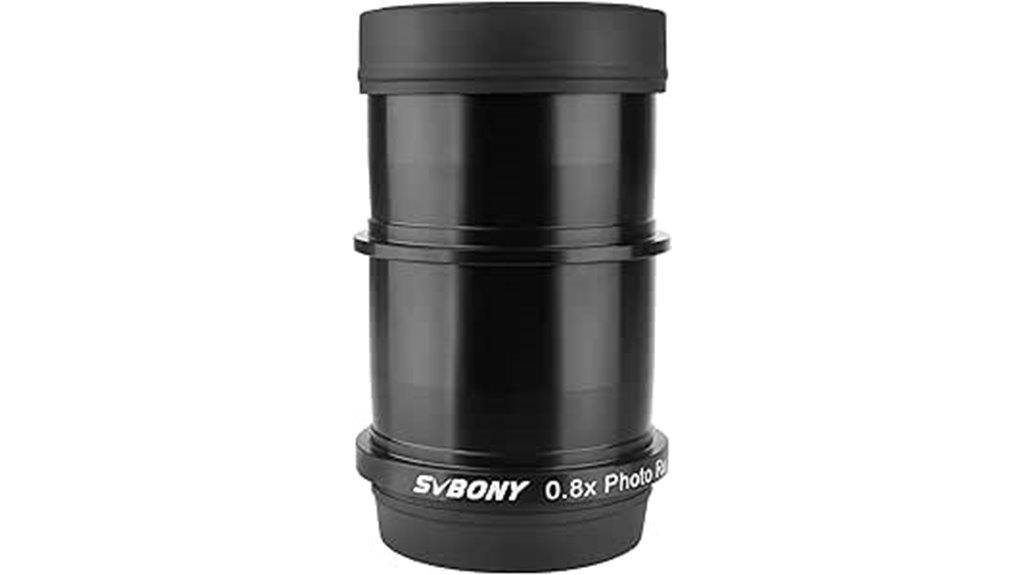

SVBONY Focal Reducer for SV503 102mm ED Telescope
The SVBONY Focal Reducer for the SV503 102mm ED telescope stands out as an excellent choice for astrophotographers seeking to expand their field of view while maintaining high image quality. It offers a 0.8x focal reduction and field flattening, perfect for full-frame astrophotography. This reducer produces wider star fields with finer star points, improved focus, and enhanced signal-to-noise ratio. Its multi-coated optics and durable aluminum body guarantee distortion-free images and long-lasting performance. Lightweight at just over 12 ounces, it’s easy to carry and integrate seamlessly with the SV503 102mm ED refractor, making it a versatile addition to your astrophotography toolkit.
Best For: Amateur and professional astrophotographers seeking high-quality, wide-field images with their SV503 102mm ED telescope.
Pros:
- Provides 0.8x focal reduction and field flattening for expansive astrophotography.
- Multi-coated optics and durable aluminum body ensure clear, distortion-free images and long-lasting use.
- Lightweight design (just over 12 ounces) for easy handling and seamless integration with the telescope.
Cons:
- Compatible primarily with the SV503 102mm ED telescope, limiting versatility with other models.
- Slightly more expensive compared to basic focal reducers, which may affect budget-conscious users.
- Requires proper threading and setup, potentially posing a learning curve for beginners.
SVBONY SV503 Refractor Telescope, 102mm F7 Achromatic Refractor
If you’re serious about astrophotography or detailed planetary observation, the SVBONY SV503 Refractor Telescope’s 102mm aperture and F7 focal ratio make it an excellent choice. Its extra low dispersion achromatic doublet lens with S-FPL51 ED glass substantially reduces chromatic aberration, delivering sharper, more colorful images. The fully multi-coated lens maximizes light transmission, boosting brightness and contrast. The 360° field rotator allows seamless camera or eyepiece adjustments without losing focus, which is ideal for astrophotography. Compact and lightweight, it’s perfect for backyard use, providing high-quality, detailed views of celestial objects and terrestrial scenes alike.
Best For: amateur and experienced astronomers seeking a portable, high-quality refractor telescope for astrophotography, deep sky, and planetary observation.
Pros:
- High optical quality with an extra low dispersion achromatic lens reducing chromatic aberration for sharp, colorful images
- Fully multi-coated lens maximizes light transmission, brightness, and contrast for detailed views
- Features like the 360° field rotator and retractable lens hood enhance usability for astrophotography and terrestrial viewing
Cons:
- Relatively narrow aperture compared to larger telescopes, limiting deep sky object brightness
- May require additional accessories for advanced astrophotography setups
- Lightweight and compact design might compromise some stability during extended observations
Astromania 2″ Field Flattener for Astronomy Photos
For astrophotographers seeking consistently sharp images across their entire field of view, the Astromania 2″ Field Flattener stands out as an excellent choice. It effectively corrects field curvature, ensuring pin-sharp stars from center to edge, especially at the outer limits. Designed for refractors with focal ratios from f/4 to f/8, it features an M48 thread for full aperture illumination and fits accessories within 109mm back focus. Its multi-coated lenses maximize light transmission and reduce reflections, delivering high-quality images with minimal optical aberrations. Overall, it’s a reliable addition that helps achieve professional-grade astrophotography results.
Best For: astrophotographers using refractor telescopes with focal ratios between f/4 and f/8 seeking sharp, flat-field images across their entire field of view.
Pros:
- Effectively corrects field curvature for consistently sharp stars from center to edge
- Compatible with refractors featuring M48 thread and up to 109mm back focus
- Multi-coated lenses maximize light transmission and reduce reflections
Cons:
- Designed specifically for refractor telescopes within certain focal ratios, limiting broader compatibility
- May require careful adjustment and proper setup to achieve optimal flatness
- Not suitable for use with telescopes outside the specified focal ratio range
SVBONY SV209 Field Flattener, 0.8X Focal Reducer for Refractor Telescope
Astrophotographers looking to capture sharp, wide-field images will find the SVBONY SV209 Field Flattener to be an excellent choice, especially if they use the SV550 122mm f/7 apo refractor. This 0.8X focal reducer corrects field curvature, delivering crisp focus across the entire image, including the edges. It reduces the focal length from 854mm to 683.2mm, resulting in a faster f/5.6 system ideal for astrophotography and terrestrial shots. Easy to install with a secure threaded connection, it enhances image quality and efficiency, making it a versatile tool for anyone seeking wider, sharper images with their refractor telescope.
Best For: Astrophotographers using the SV550 122mm f/7 apo refractor who want to achieve wider, sharper images with corrected field curvature.
Pros:
- Corrects field curvature for sharp focus across the entire image, including edges
- Reduces focal length from 854mm to 683.2mm for a faster f/5.6 system, ideal for astrophotography
- Easy to install with a secure threaded connection, enhancing imaging quality and efficiency
Cons:
- Designed specifically for the SV550 122mm f/7 apo refractor, limiting compatibility with other telescopes
- May require additional adapters for use with different camera or focuser types
- Slightly adds complexity to the setup process for beginners unfamiliar with focal reducers
Factors to Consider When Choosing Field Flatteners for Refractor Telescopes
When selecting a field flattener, I consider how well it matches my telescope’s compatibility and focal ratio needs. I also look at the optical coating quality and how easily it integrates into my setup. Finally, I evaluate the field of view size and how straightforward the installation process is to guarantee it fits my observing plans.
Compatibility With Telescope
Choosing a field flattener that’s compatible with your refractor telescope is essential for achieving sharp, distortion-free images. First, check that the threaded connection matches your focuser, such as M48 or 2-inch threads, for easy mounting. Ensure the flattener’s focal reduction or extension ratios align with your telescope’s optical design and intended use to avoid image distortions. It’s also important to confirm the flattener supports your telescope’s focal ratio, whether f/4 or f/8, to prevent vignetting and optimize correction. Additionally, verify that the optical and mechanical specifications match your specific model to prevent compatibility issues. Finally, consider whether the flattener is designed for full aperture illumination, guaranteeing consistent image quality across the entire field.
Focal Ratio Requirements
Focal ratio plays a crucial role in selecting the right field flattener for your refractor telescope. Most flatteners are designed to perform ideally within f/4 to f/8. Using a flattener outside this range can result in poor correction, leading to image distortions and increased aberrations. Faster focal ratios, like f/4, demand more correction due to their wider field curvature, so they require specially designed flatteners. Conversely, slower ratios such as f/8 typically need less correction, making them easier to match. Many flatteners are tailored for specific focal ratios, ensuring minimal distortion and sharpness across the entire image. Properly matching your telescope’s focal ratio with the flattener’s specifications is essential for achieving high-quality, flat-field astrophotography results.
Optical Coating Quality
Optical coating quality plays a crucial role in ensuring that field flatteners deliver sharp, bright images across the entire field of view. High-quality coatings minimize reflections and maximize light transmission, which boosts image brightness and contrast. Multi-coated lenses are essential for reducing optical aberrations, helping images stay sharp and clear from center to edge. Proper coating thickness and layering are vital for minimizing ghosting, flare, and stray light that can compromise image quality. Durable coatings, like dielectric or hard coatings, protect the lens surface against scratches and environmental damage, extending the lifespan of the flattener. Overall, the quality of optical coatings directly impacts how well a field flattener maintains consistent sharpness and contrast, making it a key factor in your astrophotography success.
Field of View Size
The size of your telescope’s field of view determines how much of the sky or landscape you can capture in a single shot, making it a critical factor when selecting a field flattener. A wider field of view allows you to capture more of the scene, which is especially important for astrophotography and landscape imaging. Achieving a larger field often involves using wider focal lengths or specialized focal reducers and flatteners. Keep in mind that the camera sensor size also influences the effective field of view—full-frame sensors benefit from larger flat fields. To get the best results, choose a field flattener designed to match your telescope’s focal ratio, ensuring sharp, distortion-free images from edge to edge without vignetting.
Ease of Installation
Choosing a field flattener that’s easy to install can save you time and frustration during setup. Look for models with compatible threaded connections like M48 or M54, which make attaching the flattener straightforward. The installation process should be simple, often involving just screwing the device into your telescope’s focuser or camera adapter. Clear instructions or user manuals are essential to guide proper setup and alignment, reducing guesswork. Some flatteners offer adjustable or rotating elements, helping you achieve precise alignment and focus after installation. Compatibility with your existing accessories, like filters and camera adapters, can also streamline the process and eliminate the need for extra adapters. Overall, choosing an easy-to-install flattener makes astrophotography more enjoyable and less time-consuming.
Image Sharpness Improvement
A key reason to use a field flattener is the noticeable improvement in image sharpness it provides. By correcting optical field curvature, flatteners ensure star images stay sharp from the center to the edges of the frame. This reduces edge distortion, keeping star points round and in focus across the entire image plane. Properly designed flatteners help maintain high resolution, preventing softness caused by optical aberrations. As a result, your astrophotography images become clearer and more detailed. High-quality flatteners with multi-coatings further enhance light transmission, boosting both sharpness and contrast. Choosing the right flattener allows you to capture crisper, more precise images, elevating the overall quality of your astrophotography work.
Light Transmission Efficiency
Ever wondered how much light a field flattener actually transmits to your camera or eyepiece? High light transmission efficiency is key to capturing brighter, more detailed images, as it minimizes light loss during the optical process. Multi-coated lenses play a crucial role here, reducing reflections that can decrease brightness and contrast. The optical design—especially lens quality and coatings—directly impacts how much light reaches your sensor, influencing overall image clarity. Choosing a well-optimized field flattener with high transmission efficiency can markedly improve your astrophotography, enhancing the signal-to-noise ratio for clearer results. Compatibility with your telescope’s focal ratio and proper thread engagement are also essential to maintain ideal light throughput across the entire imaging field.
Portability and Size
When selecting a field flattener for your refractor telescope, portability and size are essential factors that can considerably impact your setup’s convenience and ease of transport. Compact models, measuring around 4-5 inches, are ideal for easy packing and quick setup. Smaller units are more suitable for mobile astrophotography, allowing you to carry everything comfortably. Lightweight designs, often under 1 pound, make handling less tiring during long sessions and simplify mounting or adjustment. Many portable flatteners feature durable, anodized aluminum bodies that withstand outdoor conditions. Size also matters when pairing with other accessories, ensuring compatibility without adding unnecessary bulk. Prioritizing size and weight helps create a streamlined, efficient setup that’s perfect for capturing astrophotos on the go.
Frequently Asked Questions
How Do Field Flatteners Affect Image Sharpness Across the Frame?
Field flatteners greatly improve image sharpness across the entire frame by correcting optical distortions like curvature and coma. I’ve noticed that with a good flattener, stars stay pinpoint from edge to center, eliminating blurriness at the edges. They ensure my astrophotography looks professional, with consistent focus and clarity everywhere. Without one, images tend to distort at the edges, reducing overall quality. A flattener truly makes a difference in capturing sharp, detailed shots.
Can Field Flatteners Be Used With Different Telescope Brands?
Yes, I’ve used field flatteners with different telescope brands, and they’re quite versatile. Think of them like universal adapters—once I found the right size and thread, I could switch between my refractors without hassle. Just make certain the flattener matches your telescope’s specifications, especially the thread size and focal length. With proper compatibility, you’ll enjoy sharper, more uniform images no matter the brand.
What Is the Ideal Focal Length for Field Flatteners in Astrophotography?
The ideal focal length for field flatteners in astrophotography is typically between 400mm and 800mm. I find that staying within this range helps maintain sharpness across the entire image, especially when capturing wide fields or deep-sky objects. Longer focal lengths can introduce distortion, so I choose flatteners designed specifically for my telescope’s focal length. This balance guarantees clear, flat images with minimal aberrations, making my astrophotos look professional.
Do Different Eyepieces Require Specific Field Flatteners?
Different eyepieces do require specific field flatteners, much like how a painter needs different brushes for various strokes. I’ve found that matching the flattener to your eyepiece’s focal length and design helps maintain sharpness across the entire image. Not all flatteners are universal; some are optimized for particular brands or models. So, check compatibility carefully to guarantee your astrophotography remains crisp and clear.
How Do I Integrate a Field Flattener Into My Existing Astrophotography Setup?
To integrate a field flattener into my setup, I start by attaching it to the telescope’s camera or eyepiece thread, following the manufacturer’s instructions. I then connect my camera or eyepiece, ensuring everything is securely aligned. I double-check focus and adjustments to make sure the flat field is maintained across my images. Regular testing and fine-tuning help me get sharp, distortion-free astrophotos with ease.
Conclusion
Choosing the right field flattener truly transformed my astrophotography. For instance, I once struggled with curved star images until I used a 0.8X focal reducer. Now, my photos are crisp from edge to edge. Remember, matching your telescope’s specs with a suitable flattener can make all the difference. Don’t overlook this step—it’s the key to capturing stunning, flat-field images that bring your universe to life.
